The Trout Creek

$1,400

Plan Includes:

• Building elevations

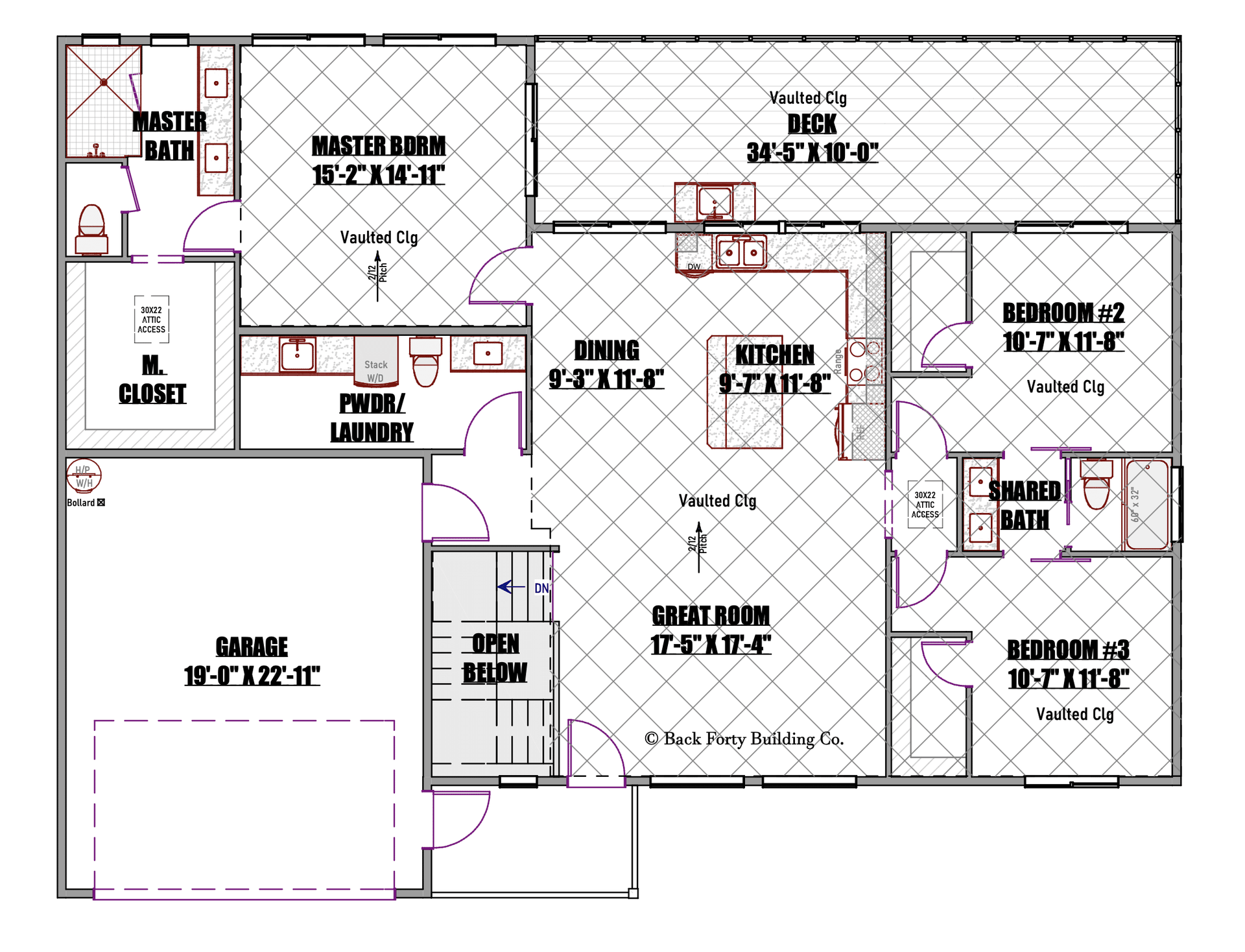

• Detailed floorplan
• Window and Door Schedules
• Roof Plan
• Electrical Plan
• Standard and Typical Details
• General notes and specifications
• Prelim-structural Foundation Slab Plan with Engineer Notes

Yes! We can customize this plan!

About

The Trout Creek

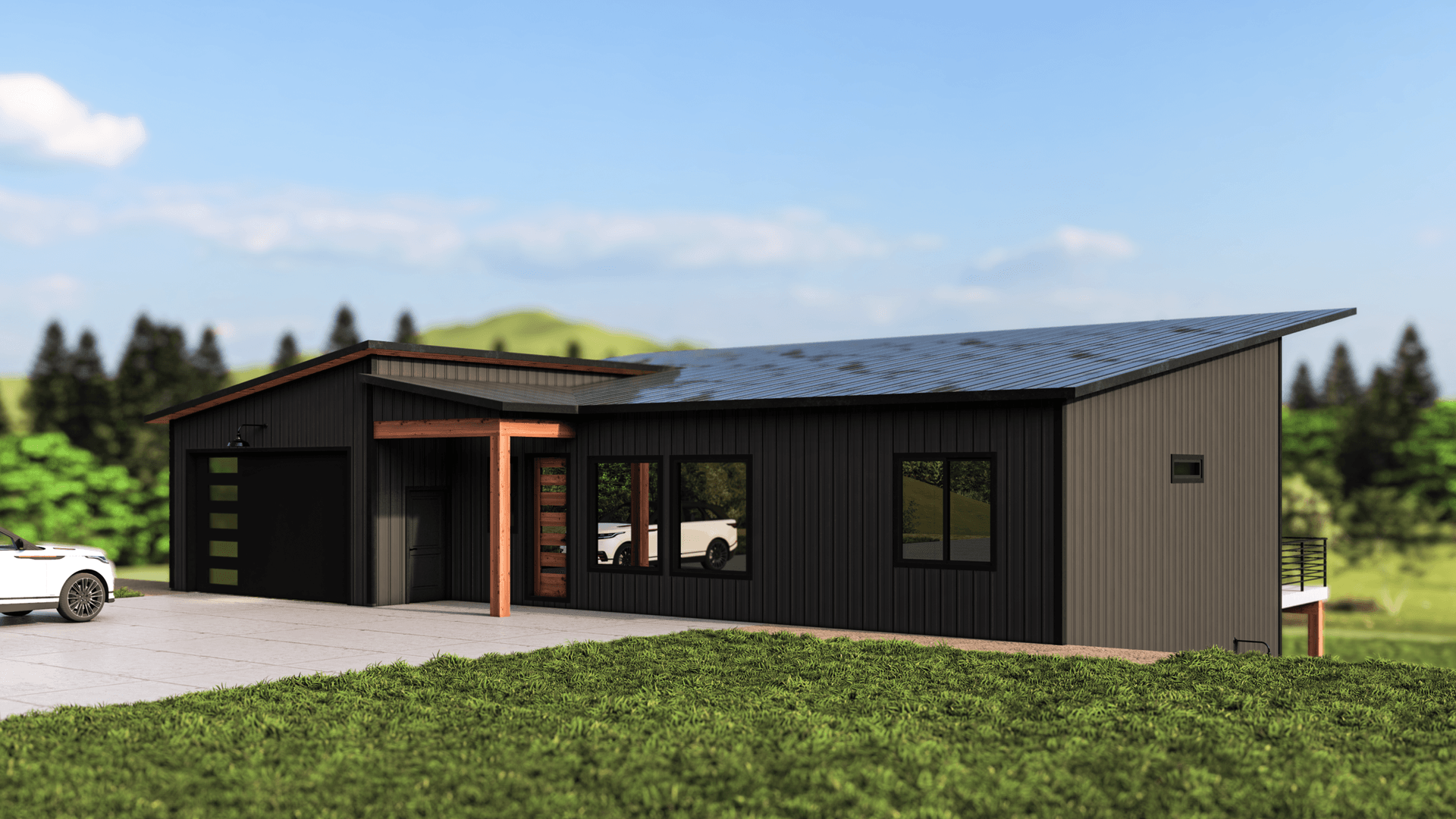

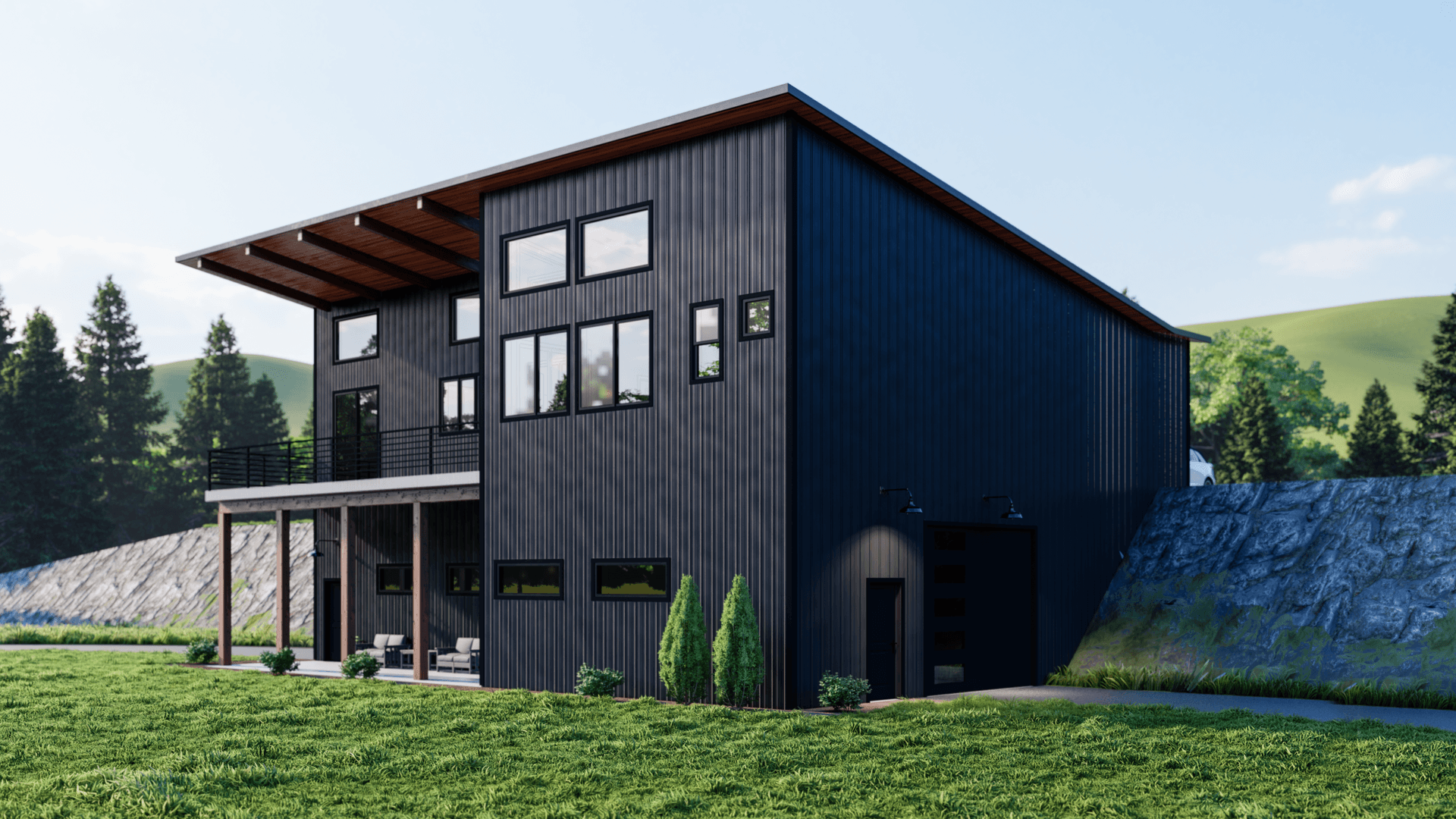

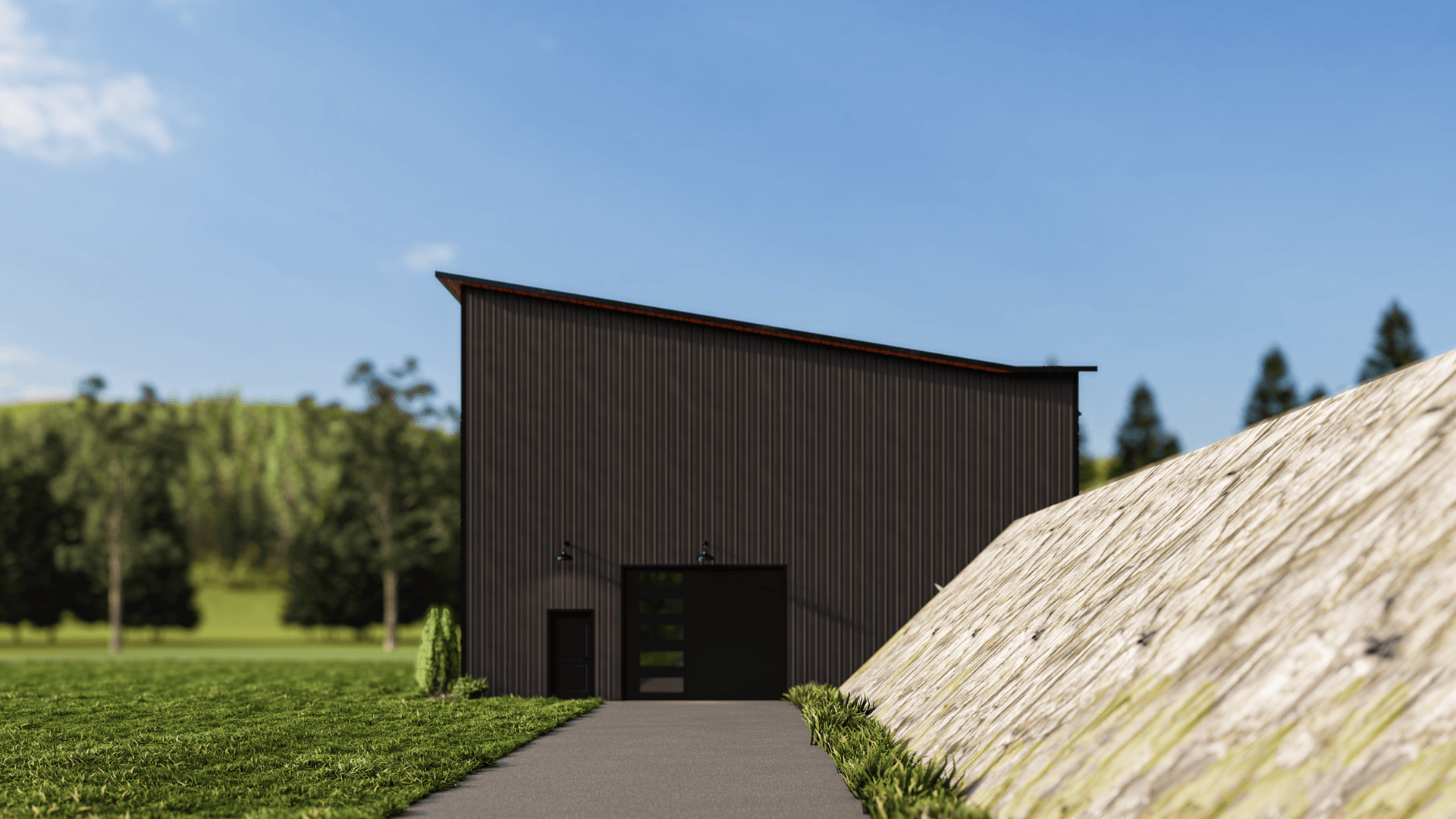

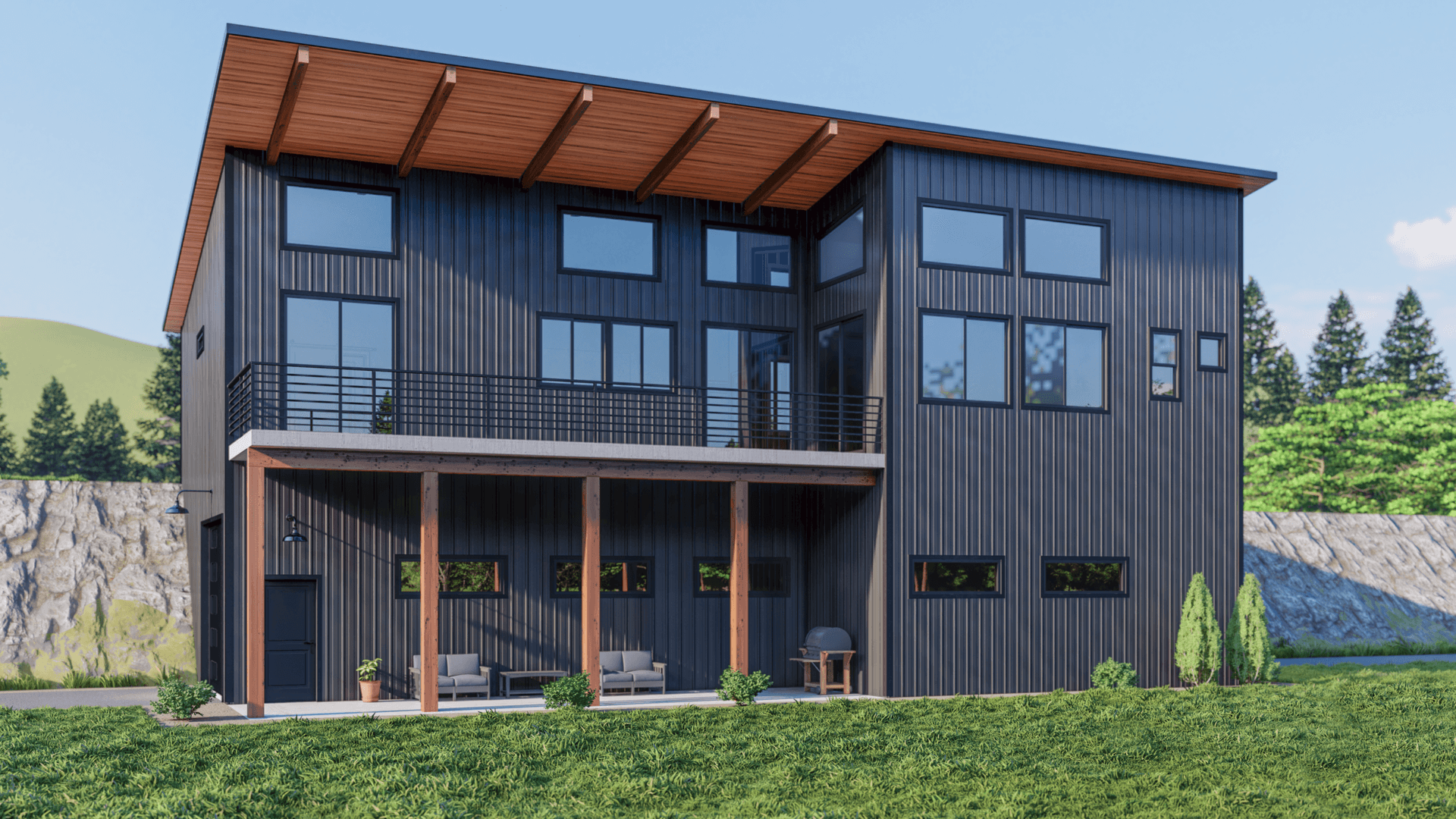

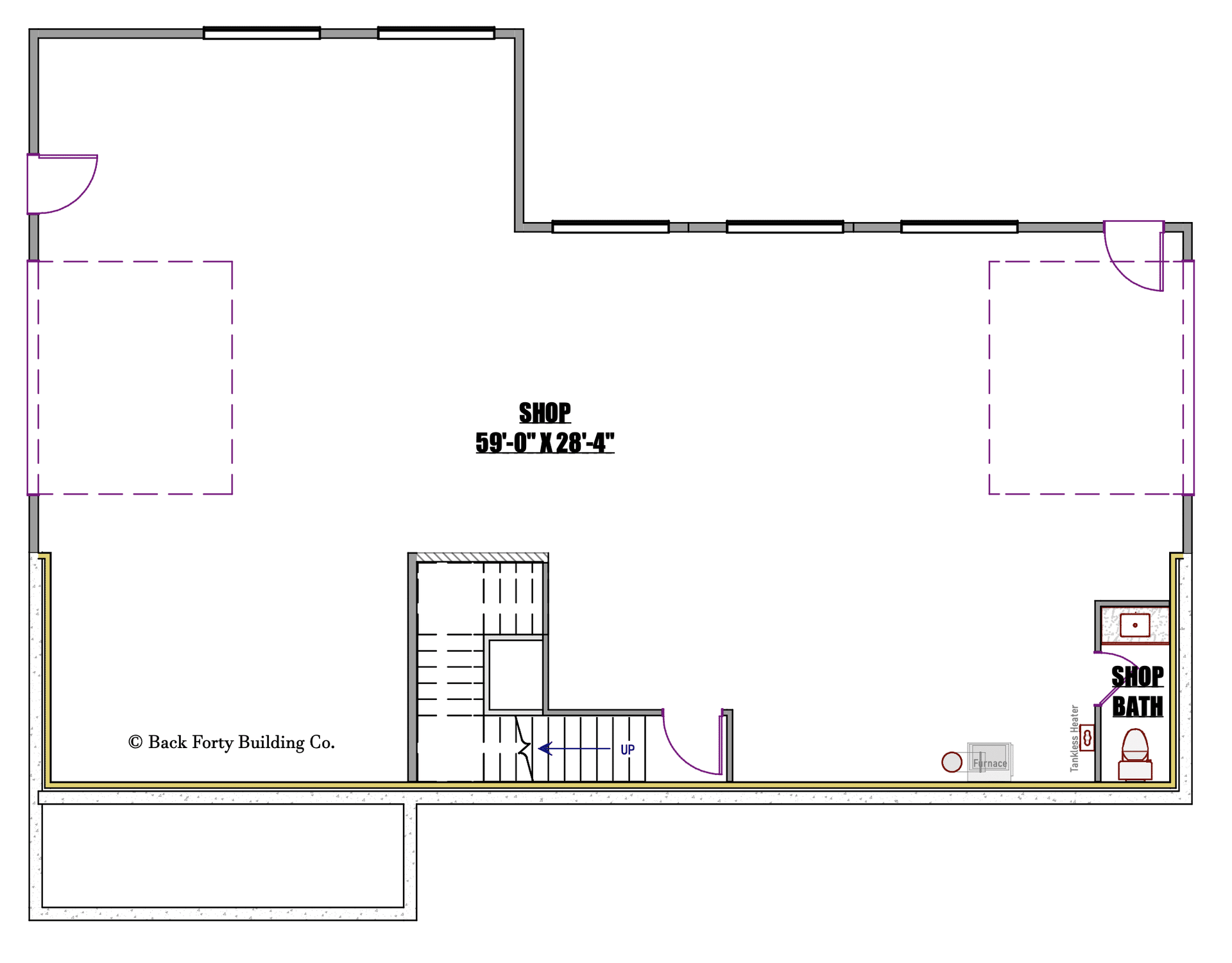

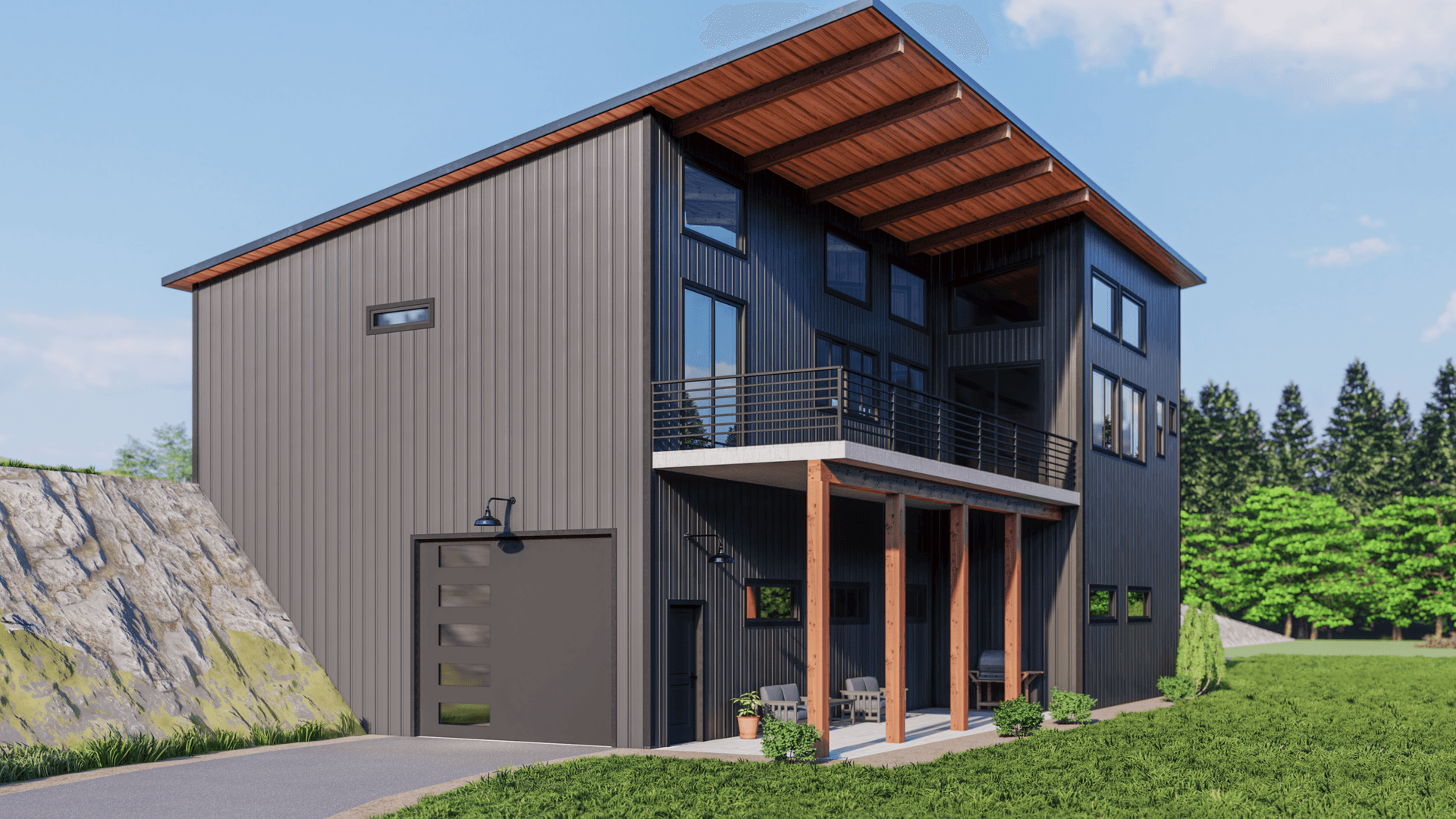

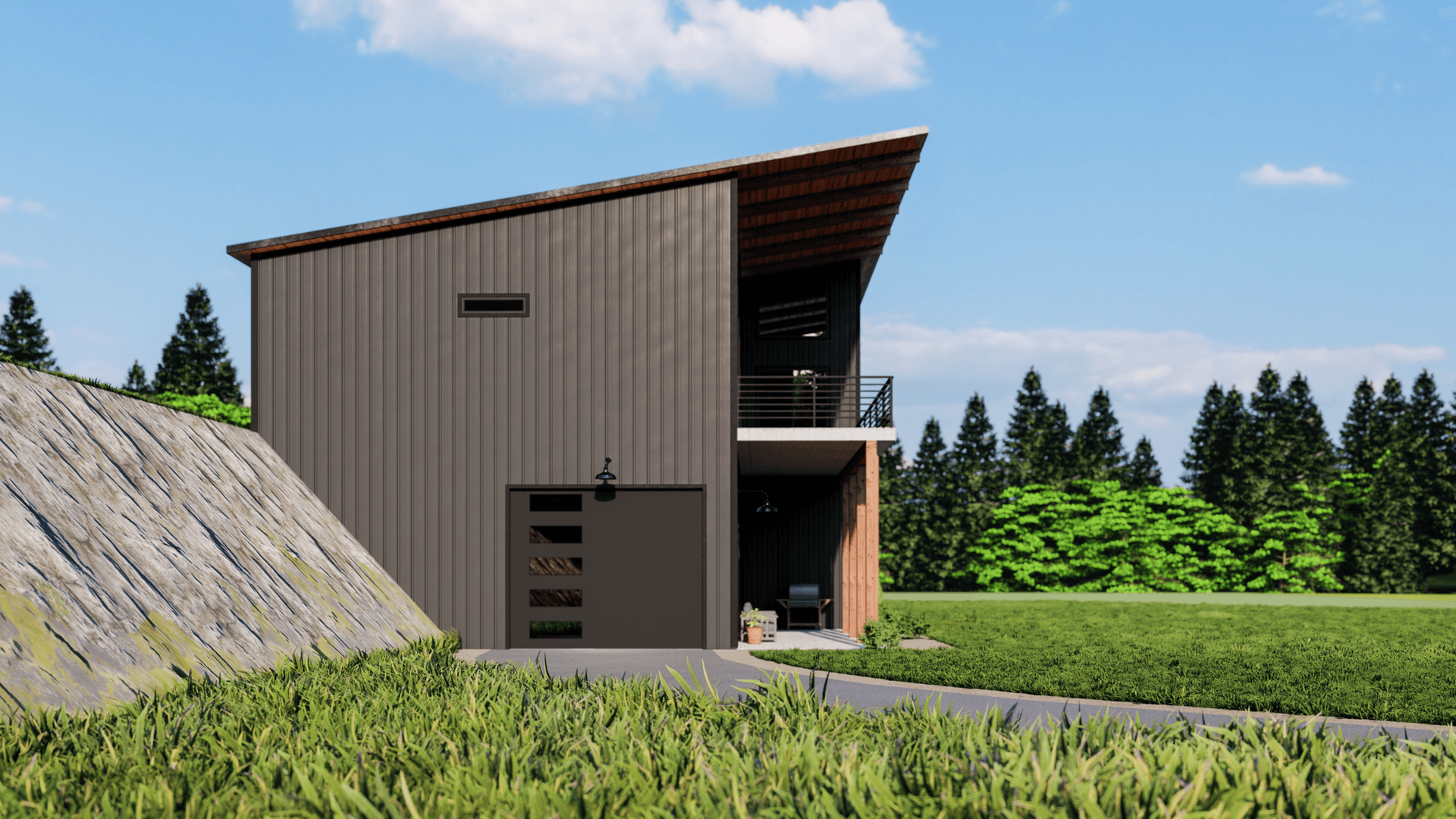

The Trout Creek sits beneath a moden, single-slope roofline, but don’t let the sleek street-view fool you! The backside of this basement barndominium hold an expansive deck, patio, perfect for soaking up your view! The unique design of the Trout Creek is ideal for narrow or sloped lots, with a side-load basement garage and concise main level living that doesn’t skimp on amenities! Need more living space? This plan can be easily modified to include a finished basement, just ask us about our alteration process!

  • Living Square Footage: 1626
  • Bedrooms: 3
  • Bathrooms: 2.5
  • Garage Bays: 2
  • Exterior: 60′ x 46′

PDF copies of plans include the following:

• Building elevations
• Detailed floorpan
• Window and Door Schedules
• Roof Plan
• Electrical Plan (note that most clients use this as a starting point, and work with their electrician to customize the electrical fixture layout to suit their needs)
• Standard and Typical Details (stair framing, footings, joists etc)
• General notes and specifications
• Prelim-structural Foundation Slab Plan (our plans can be used for steel, pole, or stick-built construction in any geographic location. You’ll work with your contractor and local building department to finalize foundation plans specific to the construction code in your area, based on your desired building materials and the snow and wind load rating in your zone. We do include detailed notes and call out general locations for plumbing drops, footings etc. in your plans. Please note that some building departments may require an engineered stamp on your foundation plans from an Engineer licensed in your state, which we are happy to provide for an additional cost).

Custom Plans

Yes! We can customize this plan!

Our drafting and design team can modify plans to fit your needs or style, whether it’s adding a garage bay, moving walls, changing roof pitch, adding a walk-in shower, or rearranging square footage to accommodate your budget! If you’re interested in modifying plans, please reach out to us via our contact page.

PDF files of your plans are sent within 24 hours of completing your purchase, to the email address you list at checkout. PDF files can be used to print plans at any scale.

All plan sales are final, however, we are happy to make changes or edit plans for a fee, after you’ve purchased the PDF files. Please contact hello@backfortybuildings.com with questions about plan modifications.
